D80 Fiber Monitoring

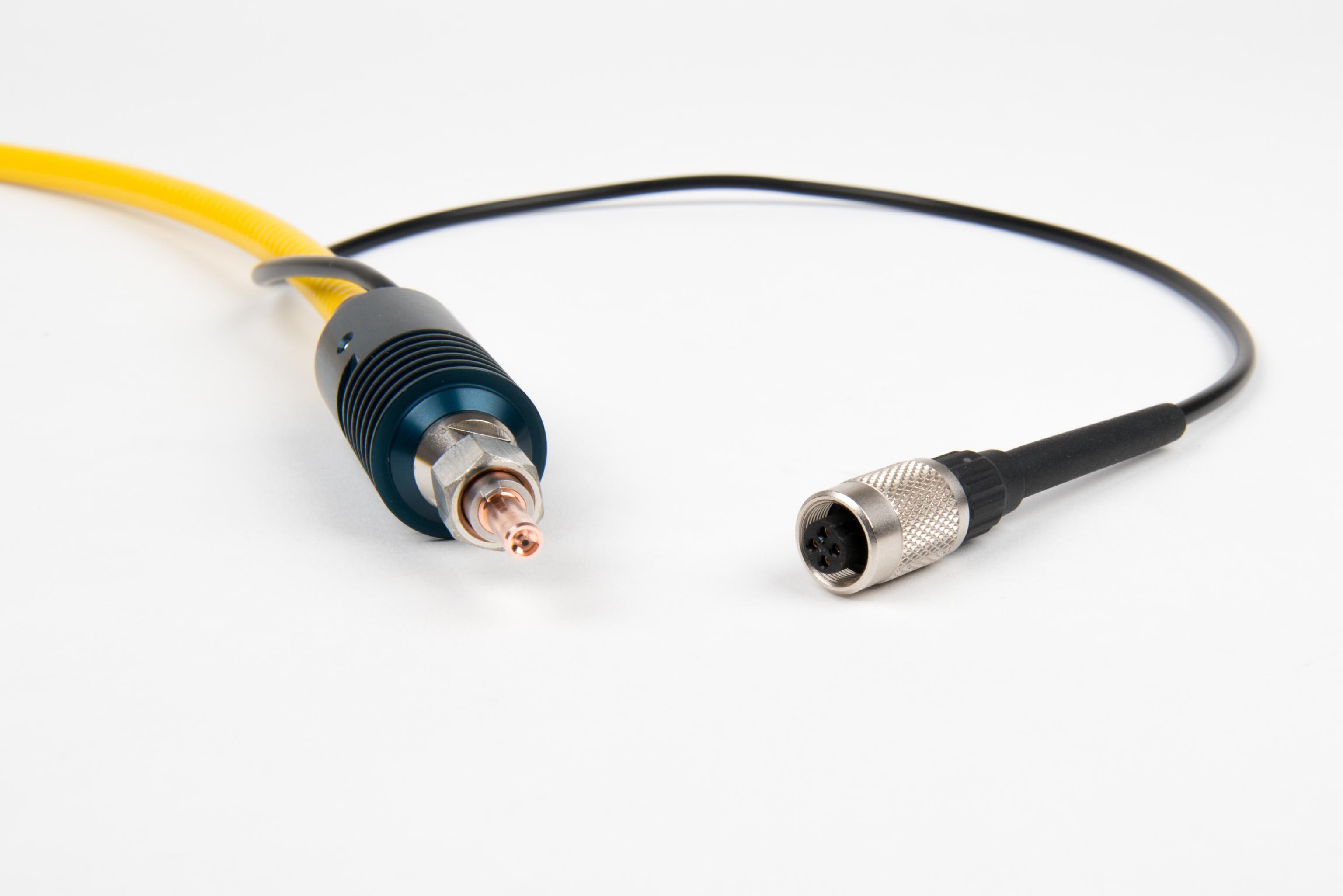

Laser Cable High Power D80 Fiber Monitoring

Laser cables High Power D80 fiber breakage monitoring are used in particularly critical applications, where a defect in the fiber can have particularly serious consequences. Apart from the fiber break, the plug temperature is also detected. The system shuts off automatically in the event of a defect, thus preventing uncontrolled leakage of the laser beam. Optionally, fiber breakage monitoring is also available for HP-SMA connectors.

Technical Specifications

Operating Voltage 5 V DC
Load Bearing Capacity 10 W
Operating Temperature 10 °C bis 30 °C
Shutdown Temperature +60 °C
Tolerance of the Shutdown Temperature +/- 2 °C
Lifetime of the Relay 100000 Schaltzyklen
Switching Time of the relay <7 ms

Gallery

Fiber Monitoring

  • Faserbruchueberwachung



Technologie

  • Fiber Monitoring
    Read more

    Read more
